Automatic attendant (IVR_XML)

1. Description

miniSIPServer V6.1 or above can support writing IVR application in XML file. It is very easy, funny and you can enjoy it. The latest "Automated attendant" service is writen with IVR_XML, we will describe auto-attendant service and IVR_XML together in this document.

Automated attendant (also auto-attendant) service allows callers to be automatically transferred to an extension without any intervention of a receptionist.

It is a very useful feature and makes small company looks like a big company. For example, auto-attendant feature maybe looks like this "welcome to xxx company. If you want to contact market department, please press 1; Contact support department, please press 2; or just press extension number directly".

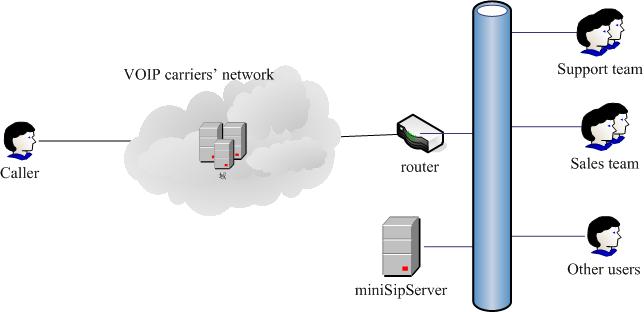

Below figure describes a basic network topology for auto-attendant deployment.


Before you deploy this feature, please confirm you have a SIP account from your VOIP carriers. Outside customers or persons can reach you at your account.

2. Configurations

What you should do is just configuring your SIP account in "external line" configuration and enable "auto attendant" at the same time.

Please click menu "data->external lines" and click "Add" or "Edit" button in pop-up window.

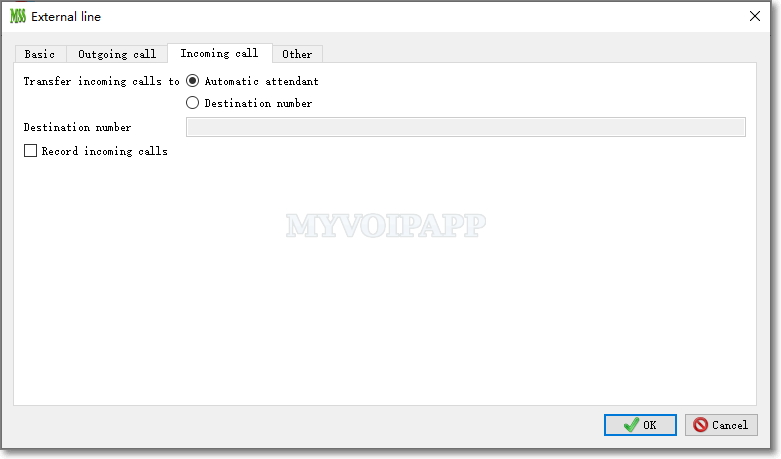

external line

In above figure, we assume the external line number assigned by your VOIP carriers is "2000". The most important is that incoming calls must be transferred to "automatic attendant".

After that, when outside caller or person call "2000", they will hear "Welcome, please enter extension number" announcement and MSS will route this call to the extension according to their input extension number.

3. Advance configuration

As we have described before, the default announcement for auto-attendant in miniSIPServer is just "Welcome, please enter extension number". In most deployment, we want to change this announcement to our own announcement, such as "Welcome to xxx company, please enter 1 to sales team, enter 2 to support team, or please enter extension number directly".

Can we do that? Yes, of course.

3.1 Customize our own announcement

In MSS install directory, there is an announcement sub-directory whose name is "mss_ann". In that directory, there is a WAV file "0a080001.wav". You can replace it with your own announcement. We have to mention it here that the audio codec format must be "G.711A, 8000HZ, 7kb/second".

There is a very easy way to record our own announcement. In windows system, there is a tool "sound recorder" can do that.

Please refer to our online document "How to record our own audio file" for details.

By the way, if we have some others wonderful announcement but not such format, we can also use "sound recorder" tool to convert it to above format and attributes.

3.2 Transfer call

In our example, when caller users press "1", we want to transfer the call to sales team. We assume extensions "100", "101" and "102" belong to sales team. We want all these extensions ringing at the same time. Then, we can configure MSS as below:

  • Add local users (extensions) "100", "101" and "102".
  • For all of them, please enable ring group service and assign the same ring group ID to them.

In the sub-directory 'xml', please edit 'aa.xml' file as following:

    <action name="inputForMenu1" method="input">
        <digit value="1"  nextaction="connectSalesTeam" />
        <digit value="11" nextaction="connectDISA" />
        <digit nextaction="connectExtension" />
    <action name="connectSalesTeam" method="callto">

Then, all these extensions will ring at the same time when caller press "1".

3.3 Multi-menus and IVR_XML file

In previous scenario, we just establish a simple auto-attendant. It cannot support multi-levels voice menus. For example, if user press '1', we maybe want to continue prompt "Contact Asia market department, press 1; Contact Europe market department, press 2; ...".

It is very easy to provide multi-menus by editing IVR_XML service file 'aa.xml'.

For example, we can update this XML file to support above multi-menus.

    <action name="inputForMenu1" method="input">
        <digit value="1"  nextaction="menu2" />
    <action name="menu2" method="playandwaitinput">
    <action name="inputForMenu2" method="input">
        <digit value="1" nextaction="contactAsiaMarket" />
        <digit value="2" nextaction="contactEuropeMarket" />
        <digit nextaction="menu2" />
    <action name="contactAsiaMarket" method="callto">
    <action name="contactEuropeMarket" method="callto">

You can see it will be very easy to customize your own IVR process if you are familar with XML format. Please click here to get more details about MSS IVR-XML.

3.4 Relay media stream procedure

There is media modification during the automatic attendant service process. First, the caller party will hear the prompt of MSS to enter extension numbers. Second, the caller party will establish a final media connection with final real called party.

MSS uses "reINVITE" SIP message to inter-work with VOIP carriers or gateways to do that. But as we know, some of them cannot support "reINVITE" to update media information, so it often has one-way or no-way problems. To avoid that, MSS will have to relay media stream to keep the media connection with them. In the external line configuraiton, please configure it as following:

Relay media stream

3.5 Different IVRs

Sometimes we need deploy different IVRs for different external lines or incoming calls. MSS can trigger different IVR according to different called number.

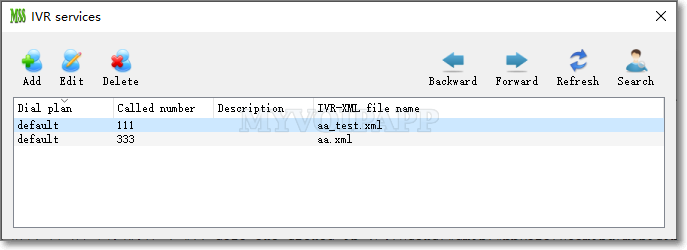

Please click menu "services / IVR services" to add different records to trigger different IVRs. Following figure describes a simple scenario: if the called number of incoming call is "111", IVR-XML file "aa_test.xml" will be loaded and triggered IVR process.

Trigger IVR configuration

Please refer to following table for details about this configuration:

Item Description
Dial plan* The "dial plan" name for incoming calls. Different local users or SIP trunks can have different "dial plan" name. If they are not indicated, the default value is always "default".
Called number*

The called number of incoming call.

miniSIPServer will trigger different IVR process according to different "dial plan" and "called number" of incoming calls.

Description Description of current record.
IVR-XML file name

IVR-XML file name. Please pay attention that it is just file name and doesn't include the directory path.

System's own IVR-XML files are saved in the "ivrXML" subdirectory where miniSIPServer is installed.

Customized IVR-XML files should be saved in "ivrXML" subdirectory which can be found in AppData directory. For example, the IVR-XML file "aa_test.xml" might be saved as "C:\Users\your_name\AppData\Roaming\minisipserver\ivrXML\aa_test.xml".
