How to connect CallCentric?

We refer to CallCentric online document to configure miniSIPServer to work with its VoIP servers.

In MSS main window, please click menu "Data - External lines" to add an external line with following key values.

Item Value
External line type Connect to peer SIP/VoIP server
External line (account) 17770001234 (It should be assigned by CallCentric.)
Password 5678
Server address / Domain
Server port 5060

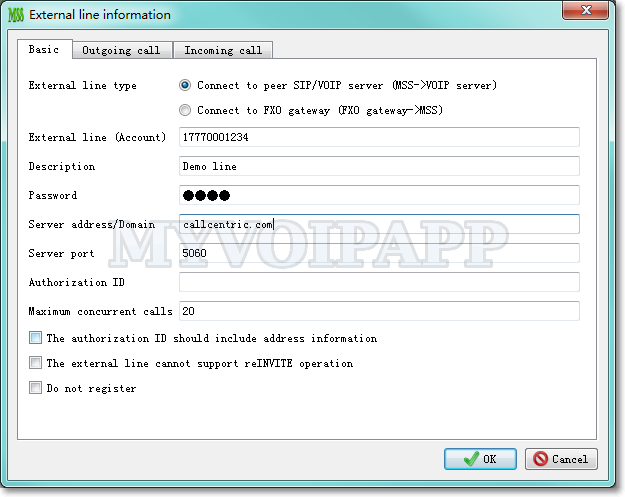

Below figure describes these details.

Configure CallCentric in miniSIPServer external line
